Integrated Solar Street Light 50W With Bridgelux/Philips Chip

Integrated Solar Street Light 50W With Bridgelux/Philips Chip

1. 50W solar street light
2. 80WP solar panel
3. 60W IP67 control
4. 40AH LiFePO4 battery
Product description: Continuous working in rainy days can be up to 3-5 days, human induction control with light control, or time control with light control.
INQUIRY

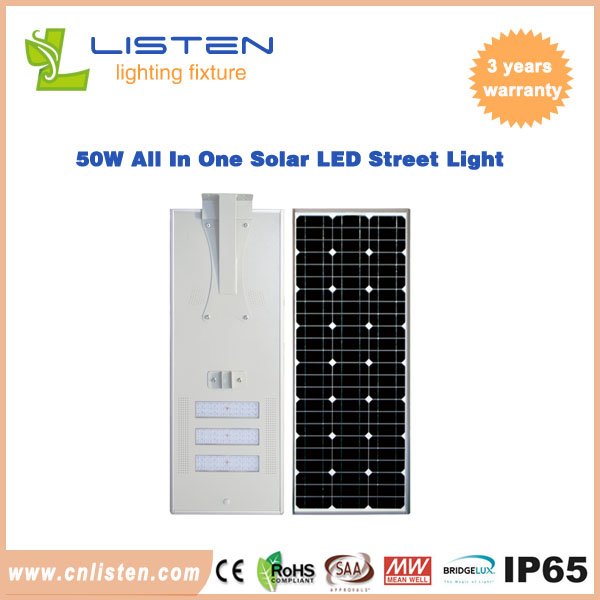

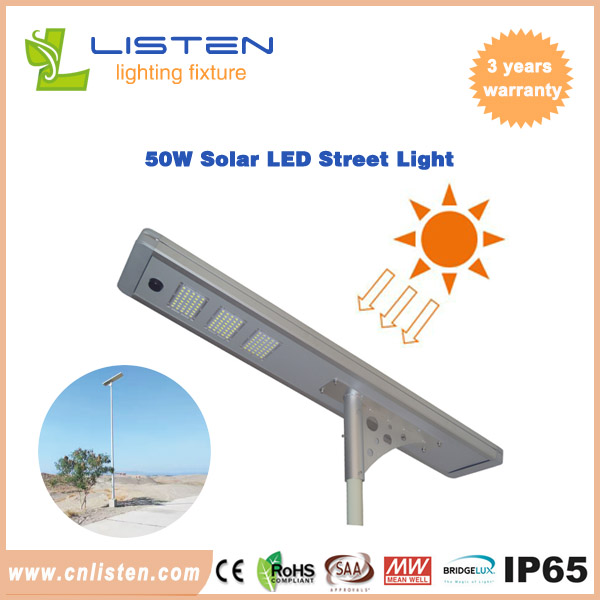

50W Integrated Solar Street Light

Our integrated solar street light is made up with the integrated parts ( solar panel, Li-Fe battery, LED, MPPT controller and human intelligence induction system). They use sunlight converted into electricity, will work at night automatically by light sensor control.

Technical Specifications:

Material：aluminium	Condition Temperature: -20-50℃
LED Qty: 80pcs Bridgelux/Philips	Work Humidity: ＞95%
Power：50W	Colour rendering index: 70Ra
Input Voltage：DC12V	Controller efficiency:≥0.90
Control：60W	Lens angle：60*120º
Batteries：40aH LiFePO4	Discharge time：0-12H ajustable
Waterproof: IP65	Capable of working in rainy day: 3-5 days
Panel：80WP	GW：20.9kg NW:18.9kg
Short Current: ＜5mA	spec.: L1690W315H65MM
lighting effect:100-110LM/W	package size：1910410170MM
Luminous Flux (lm): 5000-5500LM	Certificate：CE、ROHS、IP65

Product Description:

1. Solar panel: 80WP monocrystalline A grade solar panel, high efficiency solar cells, high fill factor module.
2. Battery: High performance lithium battery with 3-5 rainy day's back-up. Hermetically-sealed & waterproof protection conver.
3. Connector: Waterproof connector for street light exclusive use.
4. Switch: Stainless steel waterproof switch.

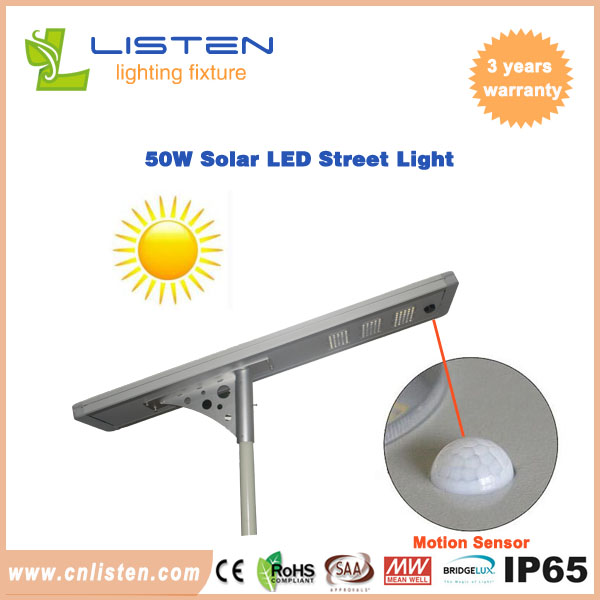

5. Sensor: Human body sensor with IP65 protection grade.
6. LED: 50W, 80pcs Bridgelux/Philips LED chips, 110LM/W, high luminous efficacy. Golden wire, BSOB wire bond. High quality waterproof silicone gasket.
7. Controller: IP67 protection grade, Time+light+PIR control. In ares which are tree-shaded or lack of sunshine, we suggest to use DC&AC complementary controller.
8. Radiator: 2.0 thermal conductivity and faster heat radiation, ensure the lifespan of LED.

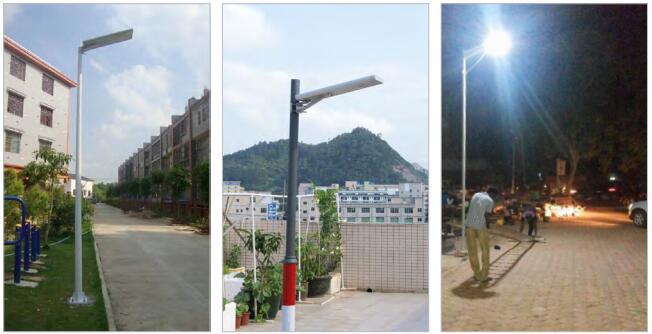

Application: Very applicable to some places such as residential area, road, courtyard, busy street and other outdoor lighting places need.

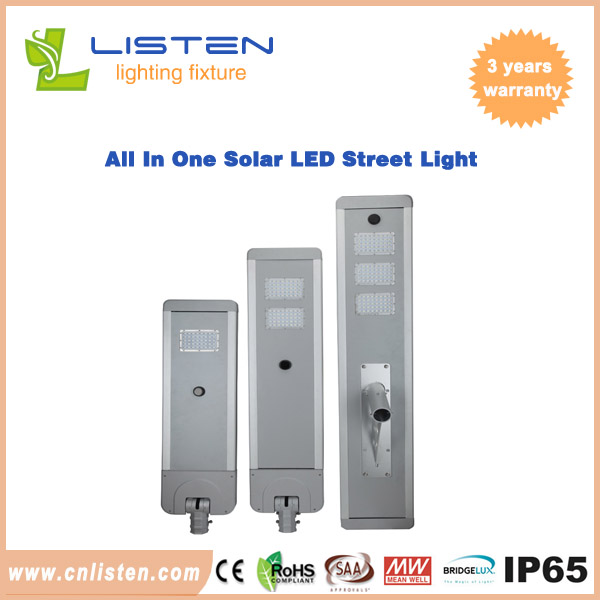

We also manufacture other design of 50W integrated solar street light, please kindly view http://www.cnlisten.com/en/product/solar-street-light-4.html for more information .

Or you can check about our other product series to know more, please click http://www.cnlisten.com/en/Lighting-Fixture.html

About Listen lighting, China,

Listen Technology Co., Ltd. is one of professional manufacturers in the field of led lighting, producing LED lighting products such as solar street light, led street light, led flood light, led high bay light, led underwater light etc. We only supply you high quality and competitive price. OEM/ODM service is available and we dedicate to providing best lighting solutions for your project. Any question or inquiry, kindly contact us or e-mail us:

---------------------------------------------------------------------
